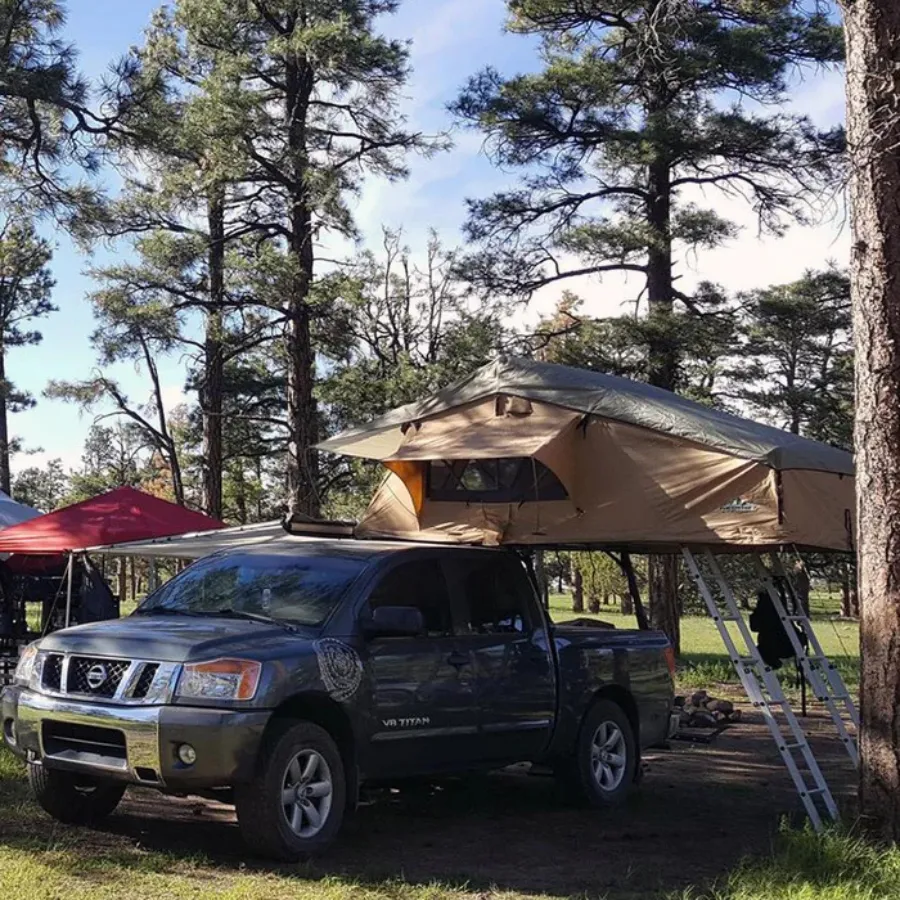

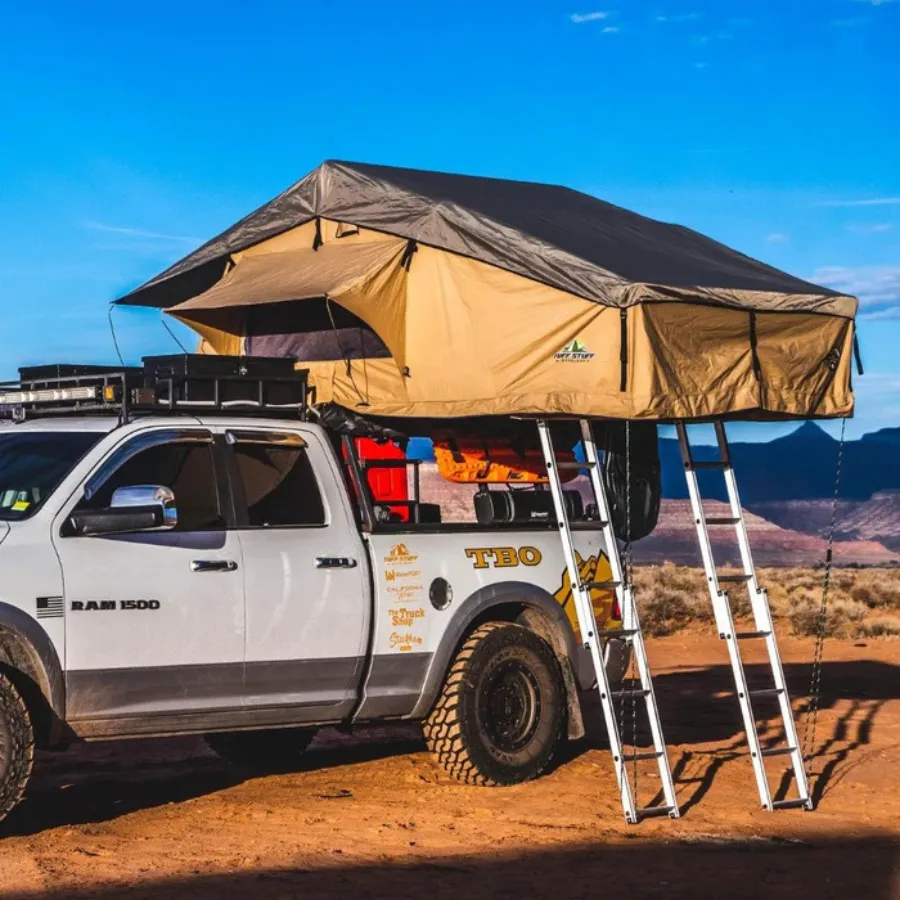

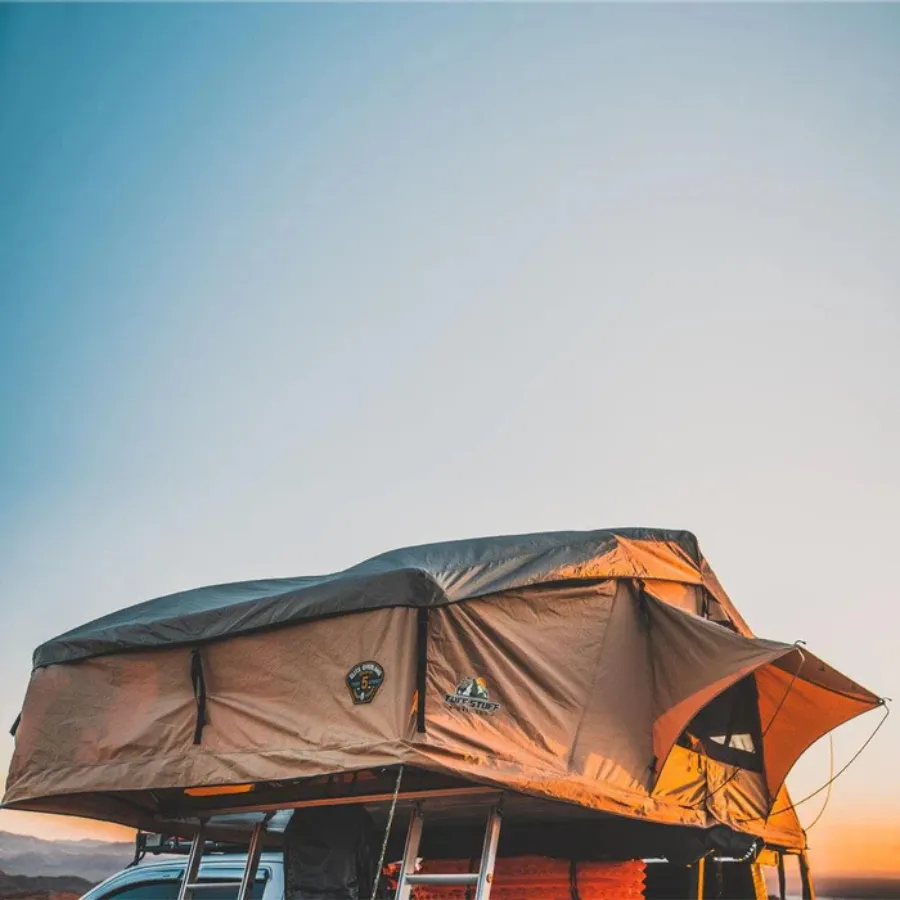

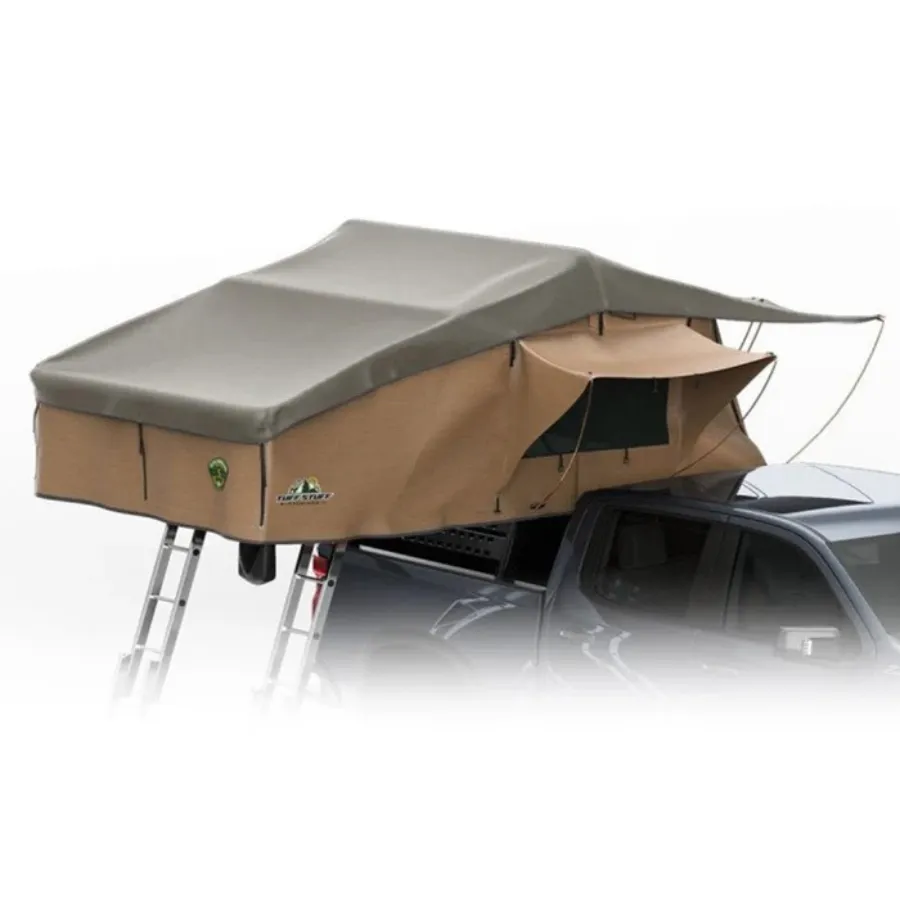

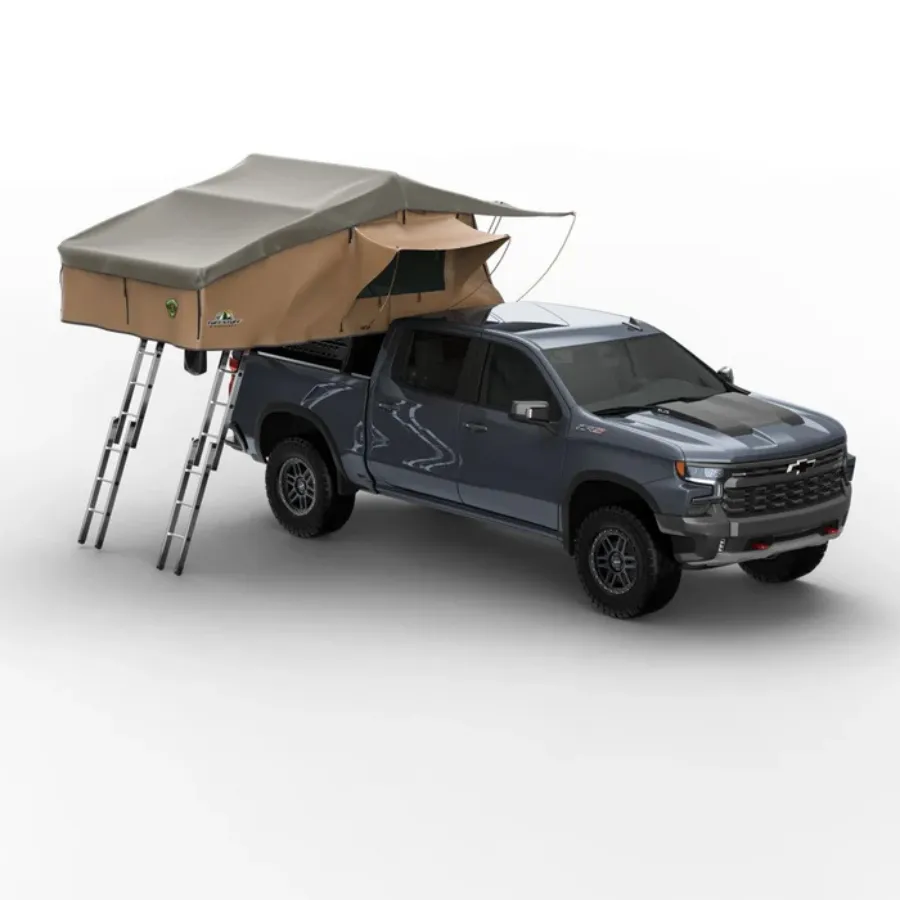

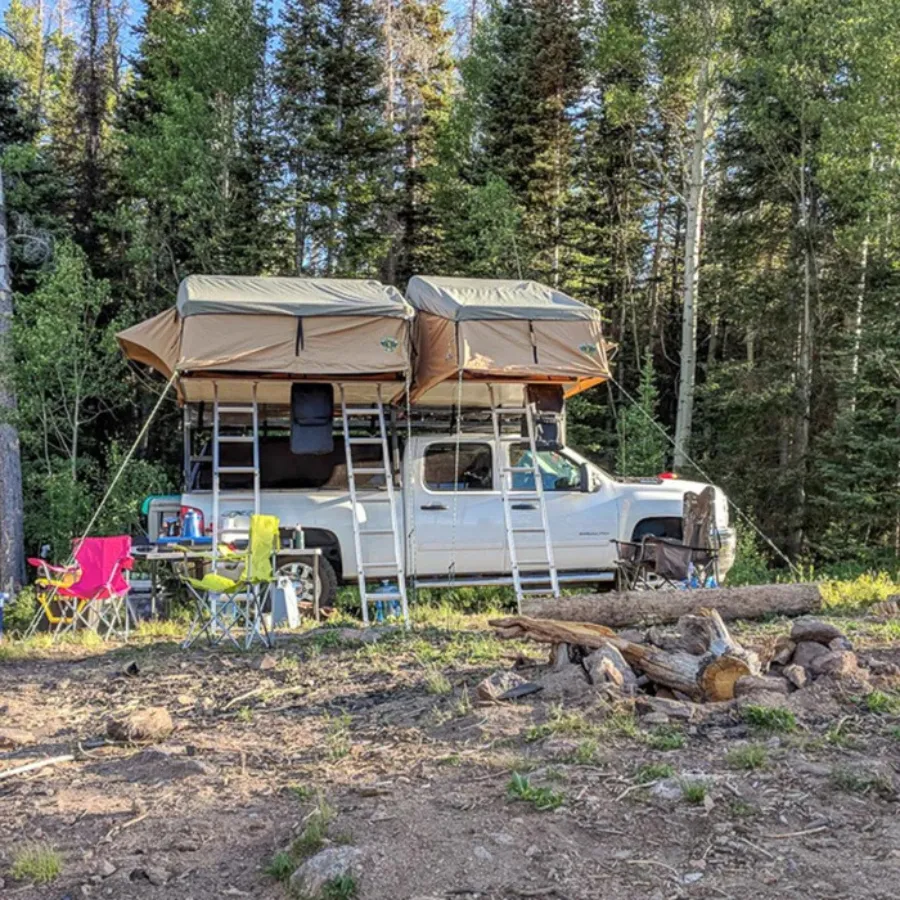

The Tuff Stuff Elite Roof Top Tent is capable of sleeping 4-5 people. Enjoy the comfort of privacy with the removable split wall and separate entry doors. A removable lower annex room is included to provide an even more elite experience.
Features & Benefits
• Four-season tent with room for five people
• Massive 78 x 95-inch mattress (bigger than a California King) with a washable cover
• Manufactured from high-quality 280D poly-cotton windproof fabric

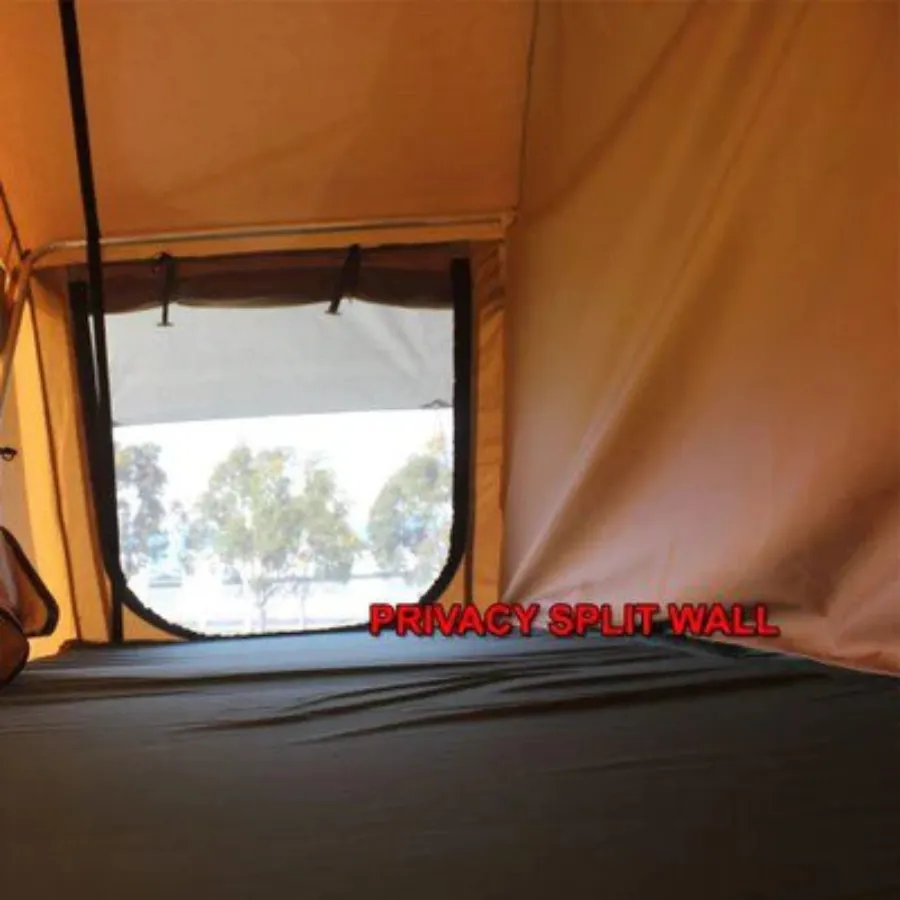

• Removable internal divider splits the tent into two separate spaces
• Heavy-duty YKK zippers
• Includes a poly-oxford 420D rain fly with the best water-shedding ability on the market

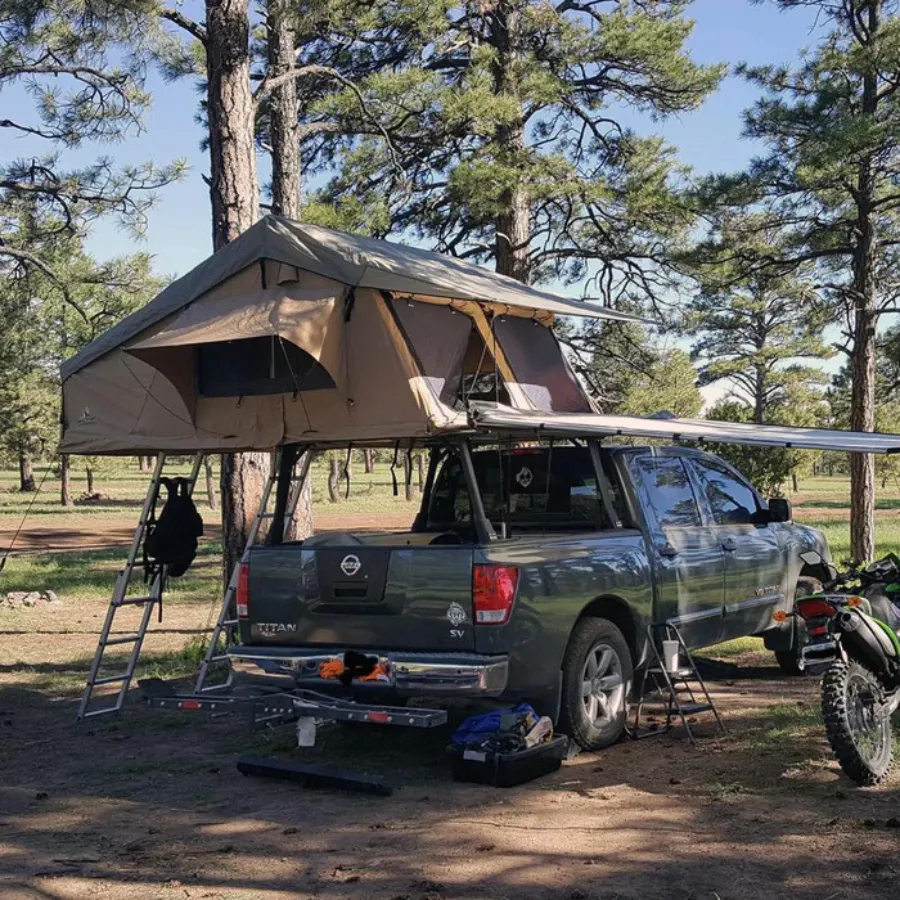

• Pull out the overhead veranda

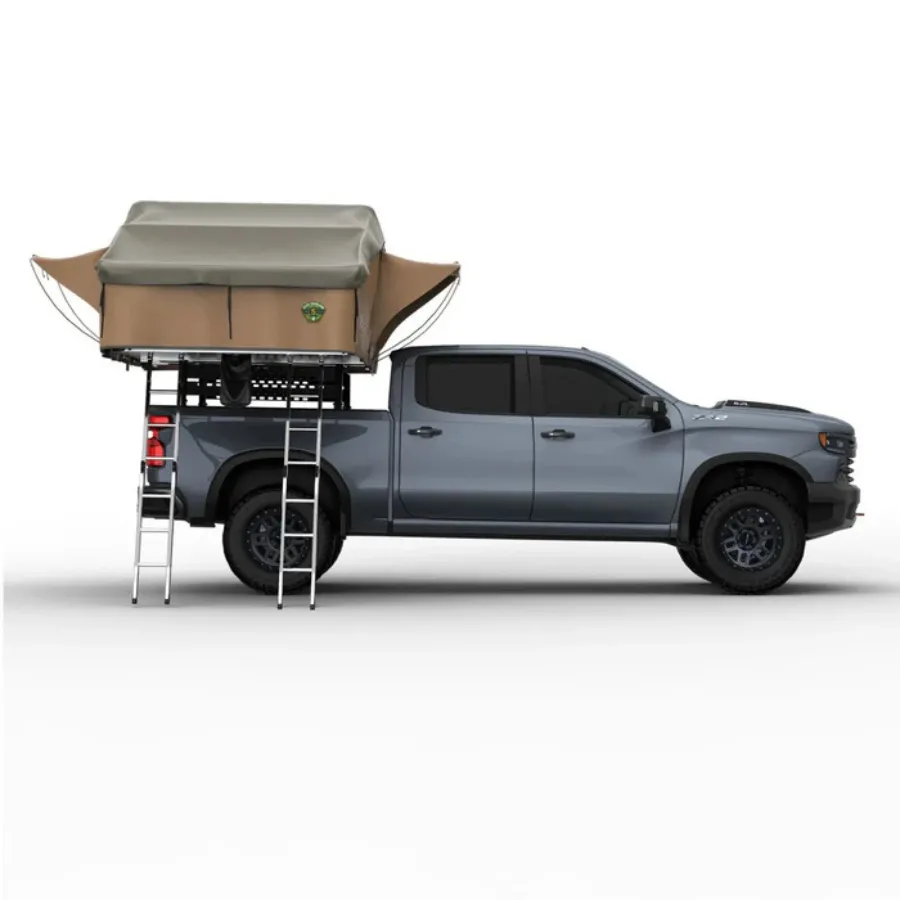

• Unfolds from either side of the vehicle (side or rear)
• All aluminum frame, ladder, and roof rack mounts
• All necessary hardware for complete installation (including tools)
• Heavy-duty PVC driving cover
Includes

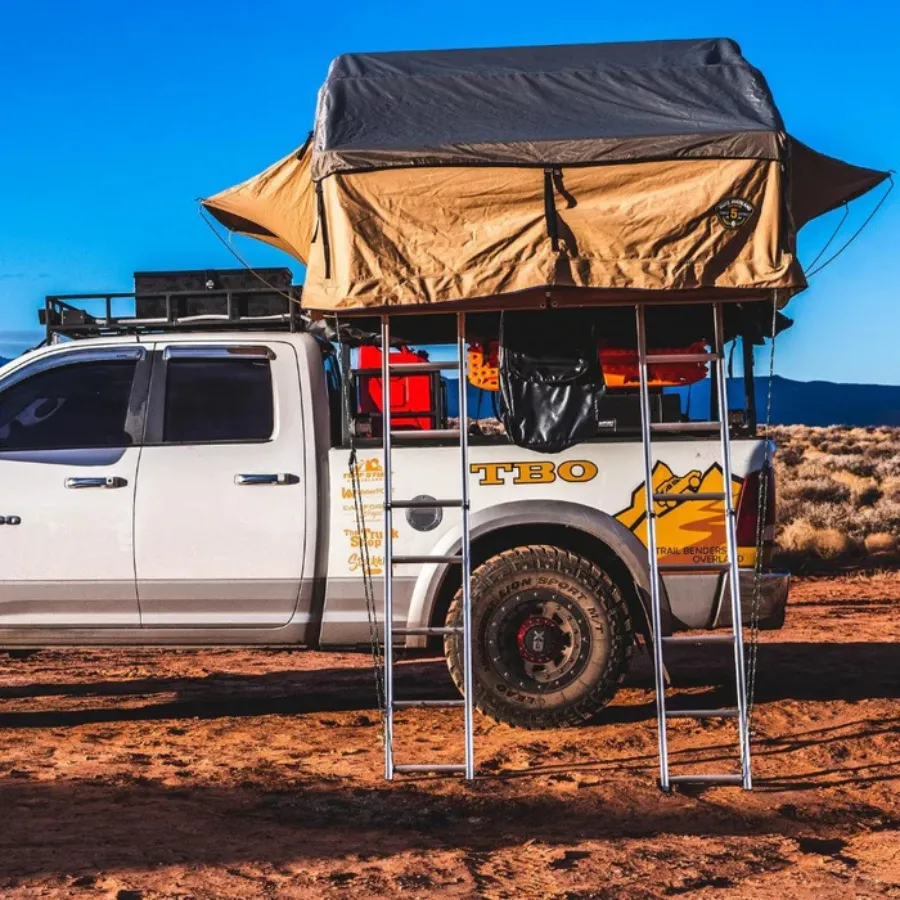

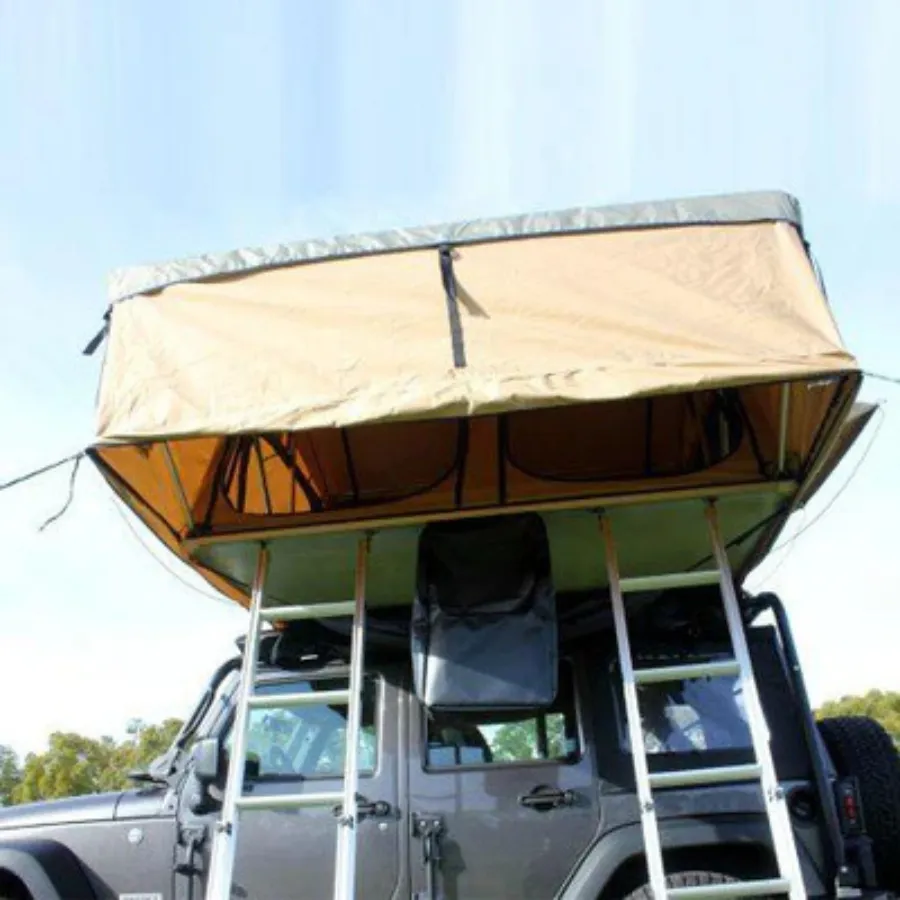

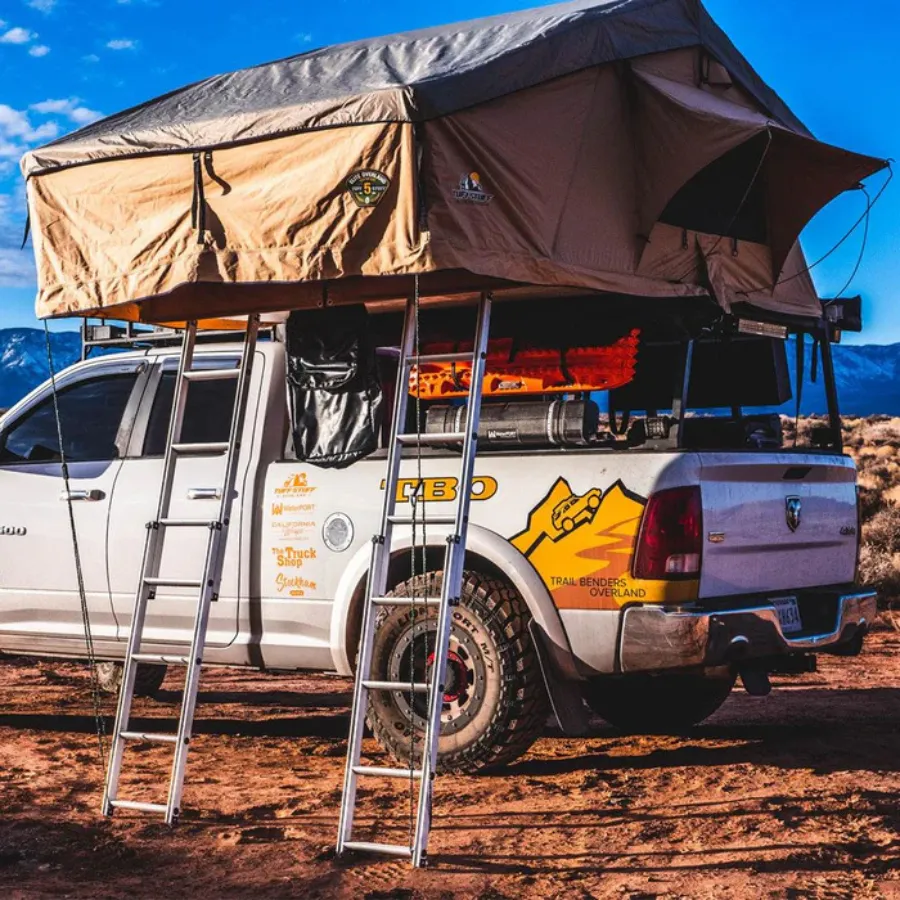

• 2 qty Sliding Ladders
• 2 qty Entry Doors Rainfly
• Black PVC Cover Annex Room w/ floor
• 2.75-inch mattress
• 1 qty of Shoe bags that slide into the tents railing for outdoor storage
• Under tent storage hammock that can be mounted inside or outside of the tent
• Installation of hardware and necessary tools
Specifications
ACTUAL WEIGHT
- 194 lbs
WEIGHT CAPACITY
- 800 lbs
DIMENSIONS L/W/H
FOLDED CLOSED
- 79 x 48 x 16 inches
OPENED
- 79 x 96 x 52 inches
OPEN W/ OVERHANG
- 132 x 79 x 52 inches
DISTANCE BETWEEN MOUNTING RAILS
- 32 inches
SEASON
- 4 season
MATTRESS FOOTPRINT

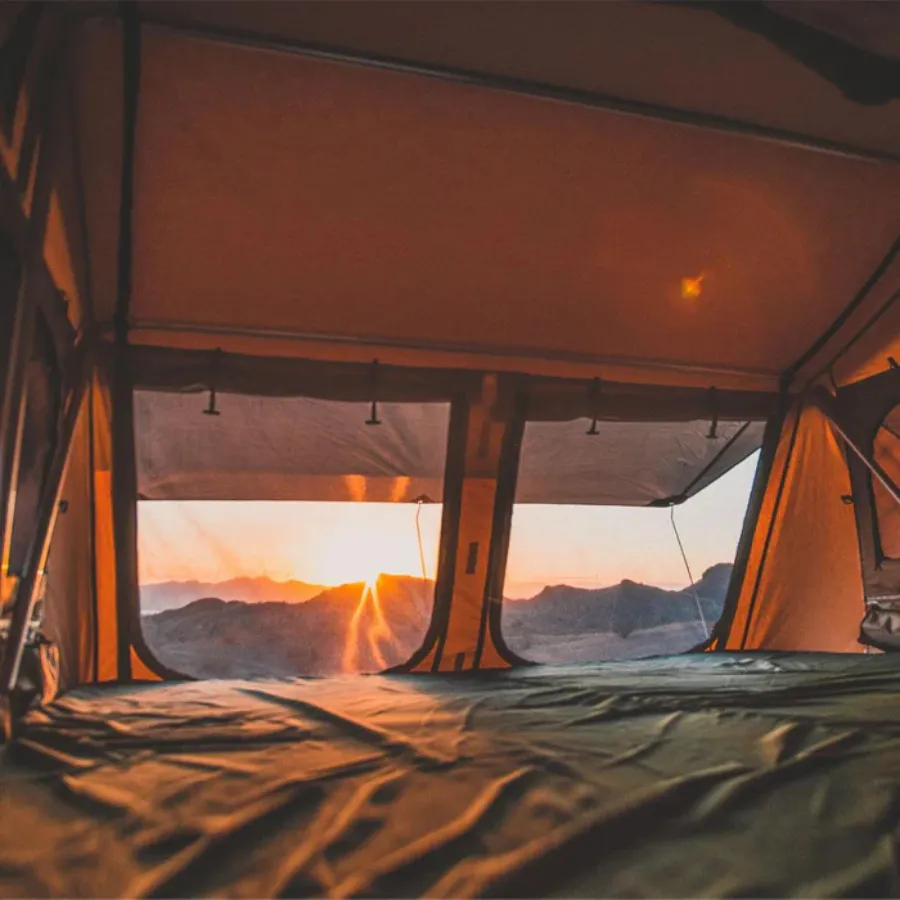

- 78 x 96 inches
- 2.75-inch thick mattress
WINDOWS
- 6 including the doors
- "No see um" mosquito mesh w/ inner/outer cover for cold/wet weather
- Taped seams to prevent moisture from leaching in through the seams

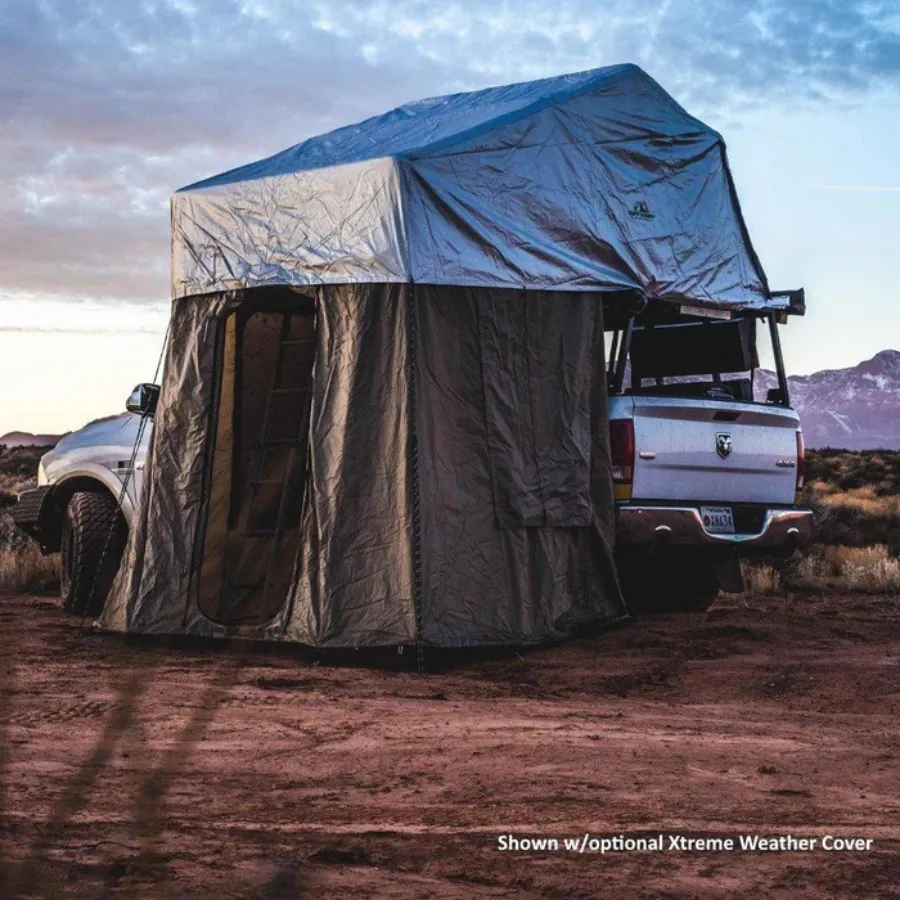

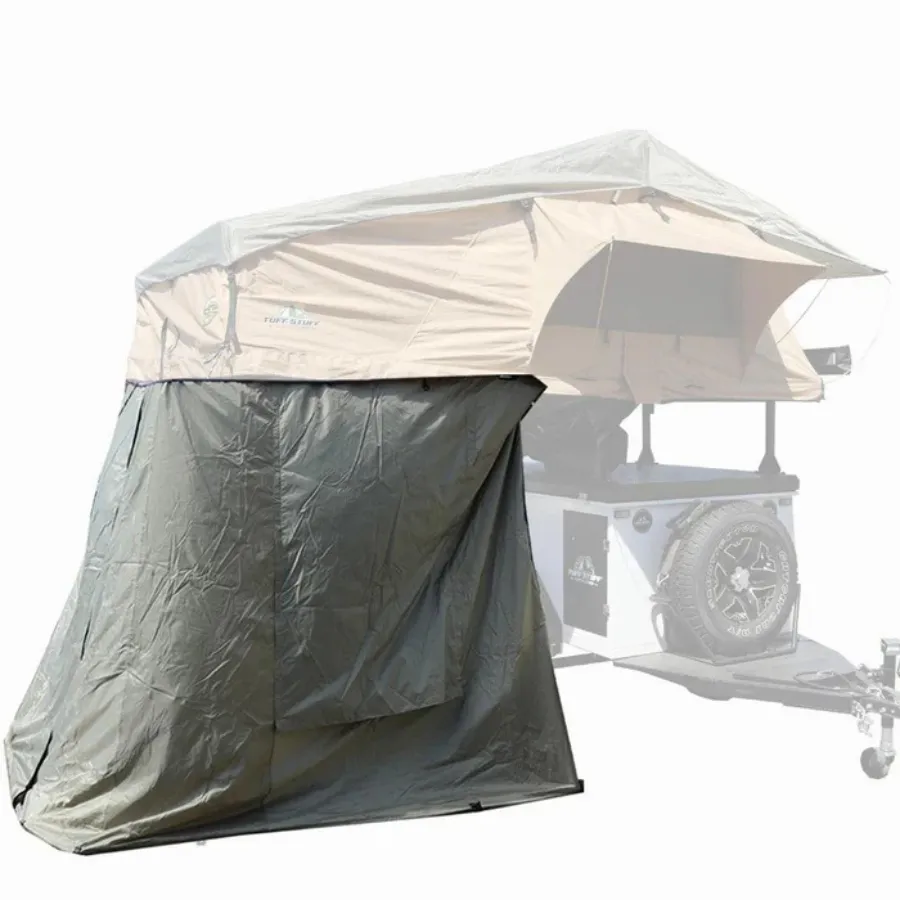

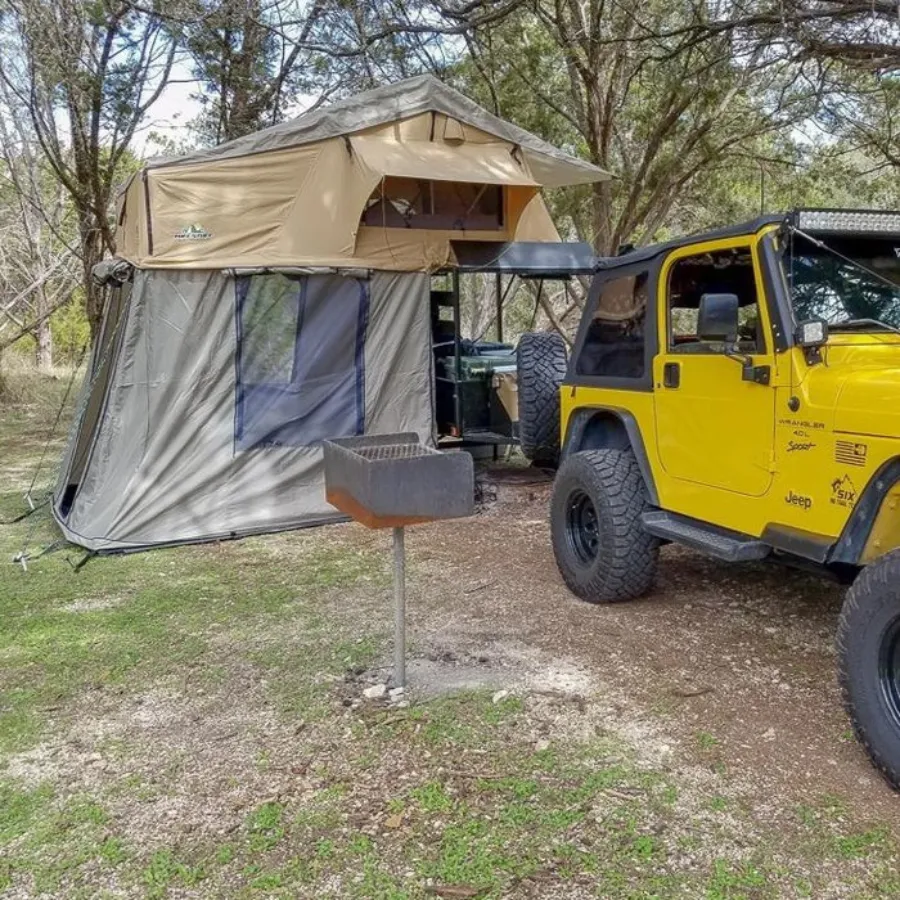

ANNEX ROOM (INCLUDED)
- 113 x 90 inches
- 420D Oxford side walls & 1000D PVC floor
- Taped seams to prevent moisture from leaching in through the seams
Base
- Welded aluminum 2-inch frame w/ aluminum sheets (top & bottom)
- Insulated between joists to keep the warm air inside
Internal Frame
- 1" diameter aluminum poles
- 420D Oxford fabric coated
Tent Material
- 280G Cotton/Poly Rip-Stop
- Polyurethane-impregnated cotton/canvas for maximum waterproof/water shedding
- Taped seams to prevent moisture from leaching in through the seams
Rainfly
- 420D Oxford polyurethane coated for maximum waterproof/water shedding
- Taped seams to prevent moisture from leaching in through the seams
Driving Cover
- Black, 1000D PVC waterproof w/heavy-duty YKK zippers
- Zips on 3 sides/Slides into tent base on 4th side
Instructions
- Install time is approx 1-2 hours with 2 people. Detailed instructions are included.
- The annex room zips on after the tent has been installed.
- All necessary spikes are included.
- All necessary hardware included (even the tools) to mount to most all roof racks (using the custom extruded aluminum channel system).
- The ideal mounting height for the tent would be 76″-78″ above the ground to allow for the ladder to extend and annex to hang to the ground.

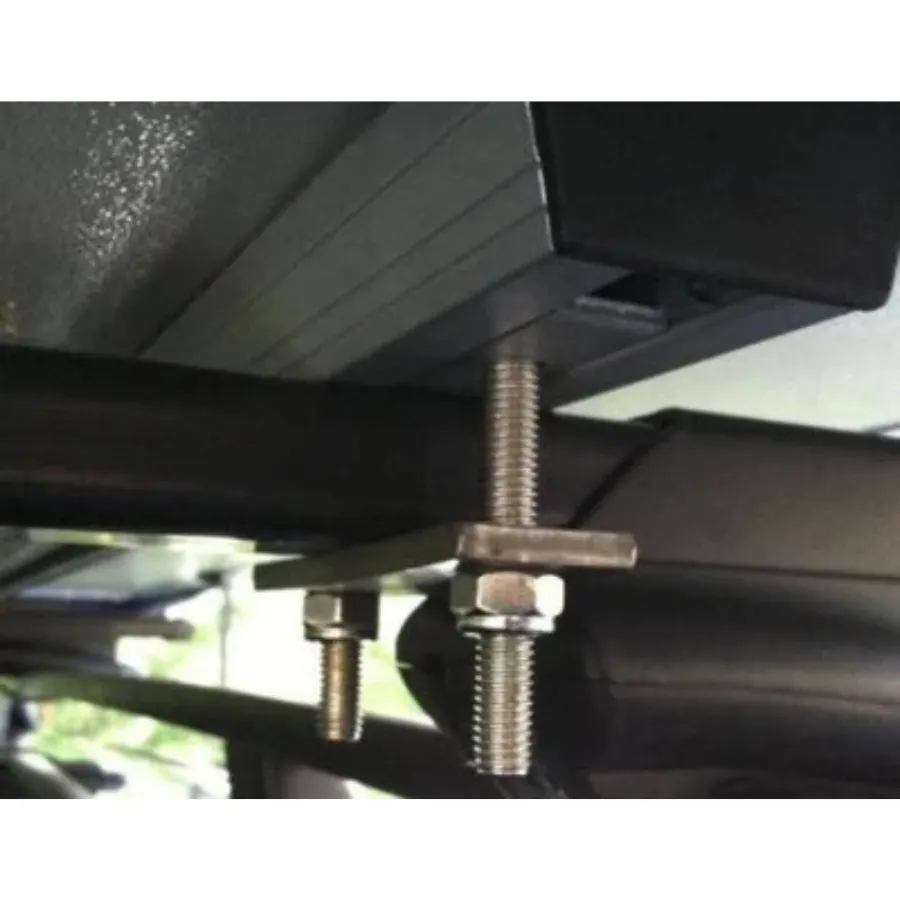

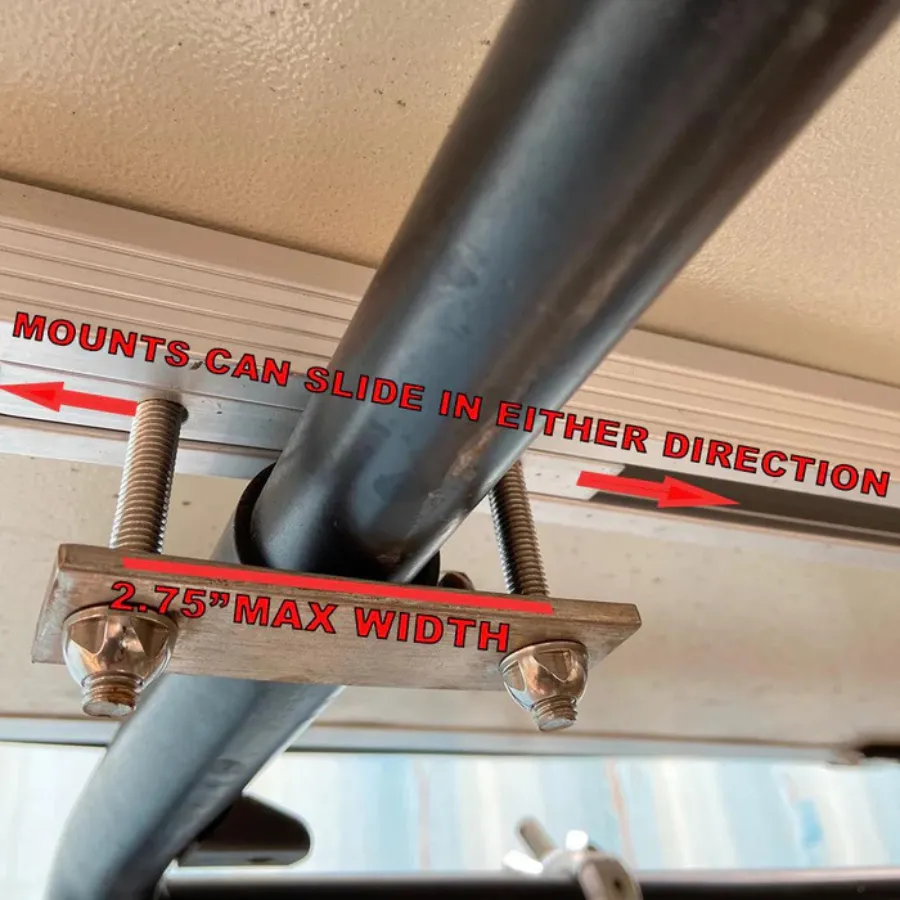

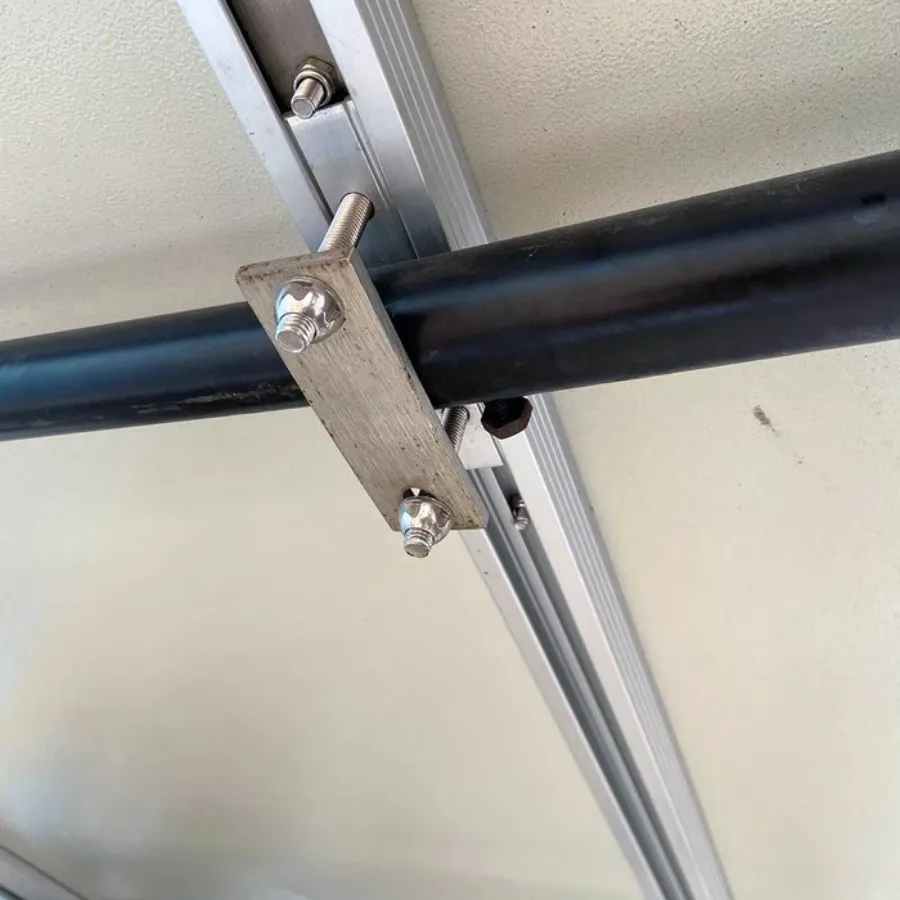

**Tent mounts slide In the lower mounting rail to accommodate any crossbars (left to right on the vehicle) with a spread of up to 52". We recommend your crossbars (left to right) are no more than 45" apart for optimal support. The included lower brackets will accept up to a 3.25" wide crossbar- Crossbars wider than 3.25" will require new brackets to be fabricated. Please see photos of the provided mounting brackets for a better idea of what to expect.**
PLEASE DO NOT fabricate your mounting rails before you receive your tent. It never ends up well.
PLEASE NOTE: MUST PROVIDE YOUR OWN ROOF RACK OR BASE FOR THE TENT TO BOLT TO
